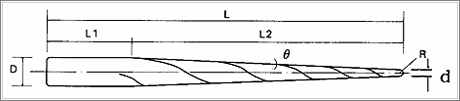

Specification |
단위 unit : ㎜
공차 tolerance : +0,-0.01㎜,±5' |
|
품명
Item |
D |
d |
L2 |
L |
θ |
| TD-0416 |
4 |
1.6 |
45 |
80 |
1˚ 30´ |
| 0424 |
4 |
2.4 |
45 |
80 |
1˚ |
| 0521 |
5 |
2.1 |
55 |
90 |
1˚ 30´ |
| 0530 |
5 |
3.0 |
55 |
90 |
1˚ |
| 0626 |
6 |
2.6 |
65 |
100 |
1˚ 30´ |
| 0637 |
6 |
3.7 |
65 |
100 |
1˚ |
| 0827 |
8 |
2.7 |
75 |
115 |
2˚ |
| 0840 |
8 |
4.0 |
75 |
115 |
1˚ 30´ |
| 1040 |
10 |
4.0 |
85 |
130 |
2˚ |
| 1055 |
10 |
5.5 |
85 |
130 |
1˚ 30´ |
| 1232 |
12 |
3.2 |
100 |
150 |
2˚ 30´ |
| 1250 |
12 |
5.0 |
100 |
150 |
2˚ |
| 1050 |
10 |
5.0 |
140 |
200 |
1˚ |
| 1246 |
12 |
4.6 |
140 |
200 |
1˚ 30´ |
|
|
|
|
